Wireless input/output module
WI-IO-STD
WIRELESS INPUT/OUTPUT MODULE · STANDARD

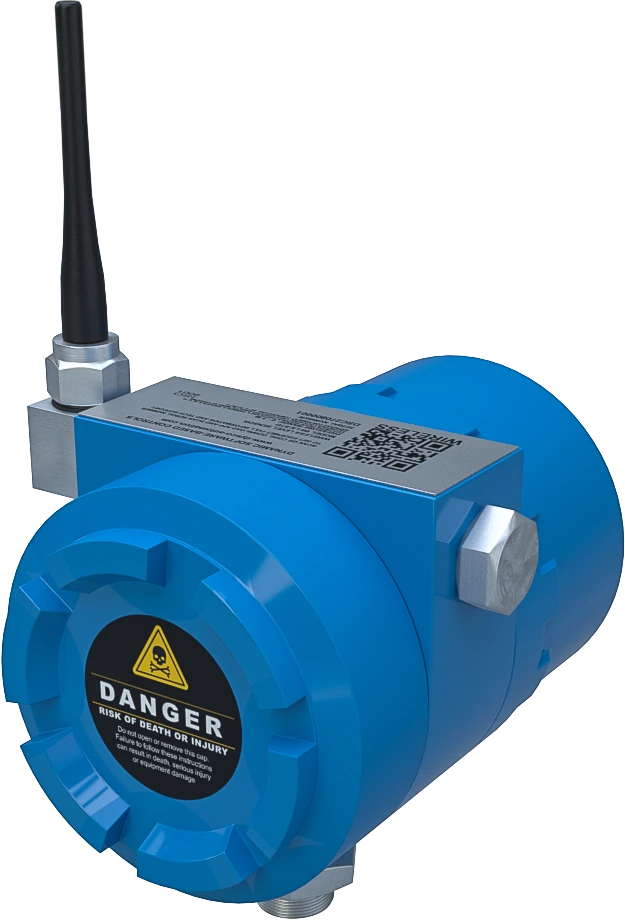

Wireless input/output module with LCD, link up to 5 km and battery life up to 12 months with data sent every 3–5 minutes. Compatible with WI-MG-STD for Modbus integration. Bottom entry for conduit or liquidtight connection; signal types and channels by configuration.
WI family: LCD, radio up to 5 km and Modbus through WI-MG-STD. Sensor/module battery life up to 12 months with data sent every 3–5 minutes; gateway externally powered.
Documentary basis: DYSCO / configuration technical documentation · Web revision 2026-10 · R3
SPECIFICATIONS
WI family: LCD, radio up to 5 km and Modbus through WI-MG-STD. Sensor/module battery life up to 12 months with data sent every 3–5 minutes; gateway externally powered.
WI-family common specifications
| Family compatibility | Every WI device is compatible with the WI-MG-STD gateway |
|---|---|
| Modbus interface | RS-485 / Modbus RTU through WI-MG-STD; not a direct Modbus sensor output |
| Wireless coverage | Up to 5 km with line of sight and suitable link conditions |
| Design objective | Designed to meet Class I, Division 2; verify unit marking and installation conditions |
| Local indication | LCD |
| Battery life | Up to 12 months with data sent every 3–5 minutes, depending on battery and use conditions |
| Battery-life conditions | Battery-life reference: data sent every 3–5 minutes. Internal sampling is configured separately |
ENGINEERING NOTES
Signal types, channel count and electrical-entry thread are defined for the ordered configuration.
The band and radio operation must match the variant and local installation regulations.
DIMENSIONS AND MOUNTING
Common head: front 83 mm, width with radio 115 mm, depth 112 mm, body 90 mm and Ø84 / Ø76 mm. Bottom conduit / liquidtight electrical entry; no pressure sensing element or process fitting.
Signal types, channel count and electrical-entry thread are defined for the ordered configuration.
CLOUDLOGGER SCADA INTEGRATION
Every WI sensor and module is compatible with WI-MG-STD. Sensor / I/O → wireless link → WI-MG-STD → RS-485 / Modbus RTU → PLC, RTU or cloudLOGGER SCADA. The gateway provides the family Modbus interface.
cloudLOGGER SCADA ↗Industrial instrumentation ↗COMMUNICATIONS AND REFERENCES
Modbus RTU is implemented on the gateway serial interface. Radio frequency and operation are verified for the installation country. If MQTT is required, it is provided at the integration layer, not claimed as a native sensor protocol.
Designed to meet Class I, Division 2. This design statement is not third-party certification; hazardous-area selection is verified against unit marking, documentation and installation conditions.
ISO/IEC 20922 ↗Modbus ↗IECEx ↗TECHNICAL QUESTIONS
Which technical information applies to this equipment?
The page distinguishes model-datasheet data from common platform references. Performance of the proposed variant is confirmed against its configuration and current documentation.
How should I interpret the drawing dimensions?
Common head: front 83 mm, width with radio 115 mm, depth 112 mm, body 90 mm and Ø84 / Ø76 mm. Bottom conduit / liquidtight electrical entry; no pressure sensing element or process fitting. Signal types, channel count and electrical-entry thread are defined for the ordered configuration.
What should I confirm before equipment selection?
Specify the variable or signal, operating conditions, connection, power, authorized band, distance and monitoring platform. Model-specific ranges and interfaces are defined for the selected equipment.
How does it integrate with cloudLOGGER SCADA?
Every WI sensor and module is compatible with WI-MG-STD. Sensor / I/O → wireless link → WI-MG-STD → RS-485 / Modbus RTU → PLC, RTU or cloudLOGGER SCADA. The gateway provides the family Modbus interface.
Can I generate the technical datasheet from this page?

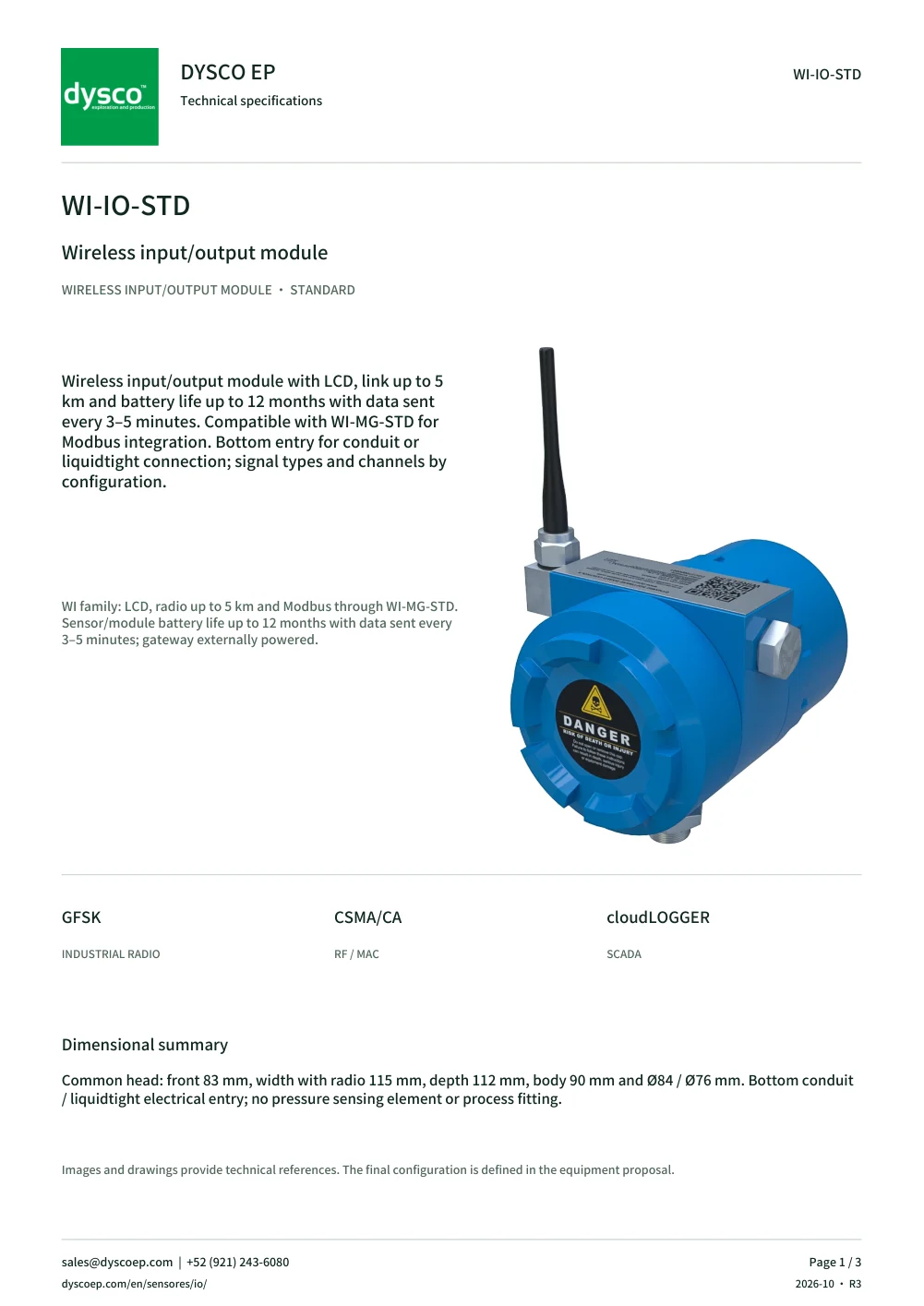

Yes. The preview and PDF are built in your browser from the same technical data as this page. The PDF includes the image, specifications, dimensional drawing, integration and contact details.
What must be checked for hazardous-area installation?
Designed to meet Class I, Division 2. This design statement is not third-party certification; hazardous-area selection is verified against unit marking, documentation and installation conditions.
