Wireless temperature sensor

WI-TS-STD

WIRELESS TEMPERATURE SENSOR · STANDARD

Temperature sensor with family ranges of −200…+1,600 °C depending on sensing element and construction; 0.5 / 0.25 / 0.1% FS accuracy. Insertion length to order, LCD, radio up to 5 km and battery life up to 12 months with data sent every 3–5 minutes. Modbus through WI-MG-STD.

WI family: LCD, radio up to 5 km and Modbus through WI-MG-STD. Sensor/module battery life up to 12 months with data sent every 3–5 minutes; gateway externally powered.

Documentary basis: DYSCO / configuration technical documentation · Web revision 2026-10 · R3

SPECIFICATIONS

WI family: LCD, radio up to 5 km and Modbus through WI-MG-STD. Sensor/module battery life up to 12 months with data sent every 3–5 minutes; gateway externally powered.

Measurement and configuration

Available family ranges−200 … +1,600 °C depending on selected element and construction
Accuracy options0.5 / 0.25 / 0.1% FS, according to configuration
Element and insertionSpecify element and insertion length; the upper family limit does not apply to a standard Pt100 probe
Process connectionsG½ / ½” NPT / PT½; DN50 / DN80 / DN100

Radio and communications

RF frequency430 MHz / 470 MHz, depending on variant
Available communicationsWSN; GPRS on the cellular-equipped variant
Acquisition and transmission profileConfigurable; battery-life reference with data sent every 3–5 minutes
Modulation / accessGFSK / CSMA/CA

Power, materials and mounting

Power supply3.6 V battery; autonomy depends on sampling, transmission and battery
Operating temperature−20 … +80 °C
Wetted partsStainless steel; verify fluid compatibility
EnclosureAluminum / IP67 according to configuration
Electrical entryM20×1.5 or ½” NPT; IP68 direct cable on the applicable variant

WI-family common specifications

Family compatibilityEvery WI device is compatible with the WI-MG-STD gateway
Modbus interfaceRS-485 / Modbus RTU through WI-MG-STD; not a direct Modbus sensor output
Wireless coverageUp to 5 km with line of sight and suitable link conditions
Design objectiveDesigned to meet Class I, Division 2; verify unit marking and installation conditions
Local indicationLCD
Battery lifeUp to 12 months with data sent every 3–5 minutes, depending on battery and use conditions
Battery-life conditionsBattery-life reference: data sent every 3–5 minutes. Internal sampling is configured separately

ENGINEERING NOTES

Measurement range depends on the element, probe, thermowell and thermal isolation. −20…+80 °C is the electronics operating limit, not the high-temperature process limit.

Figures describe family options, not all available simultaneously. Confirm range, connection, materials, power and radio for the ordered unit.

The band and radio operation must match the variant and local installation regulations.

DIMENSIONS AND MOUNTING

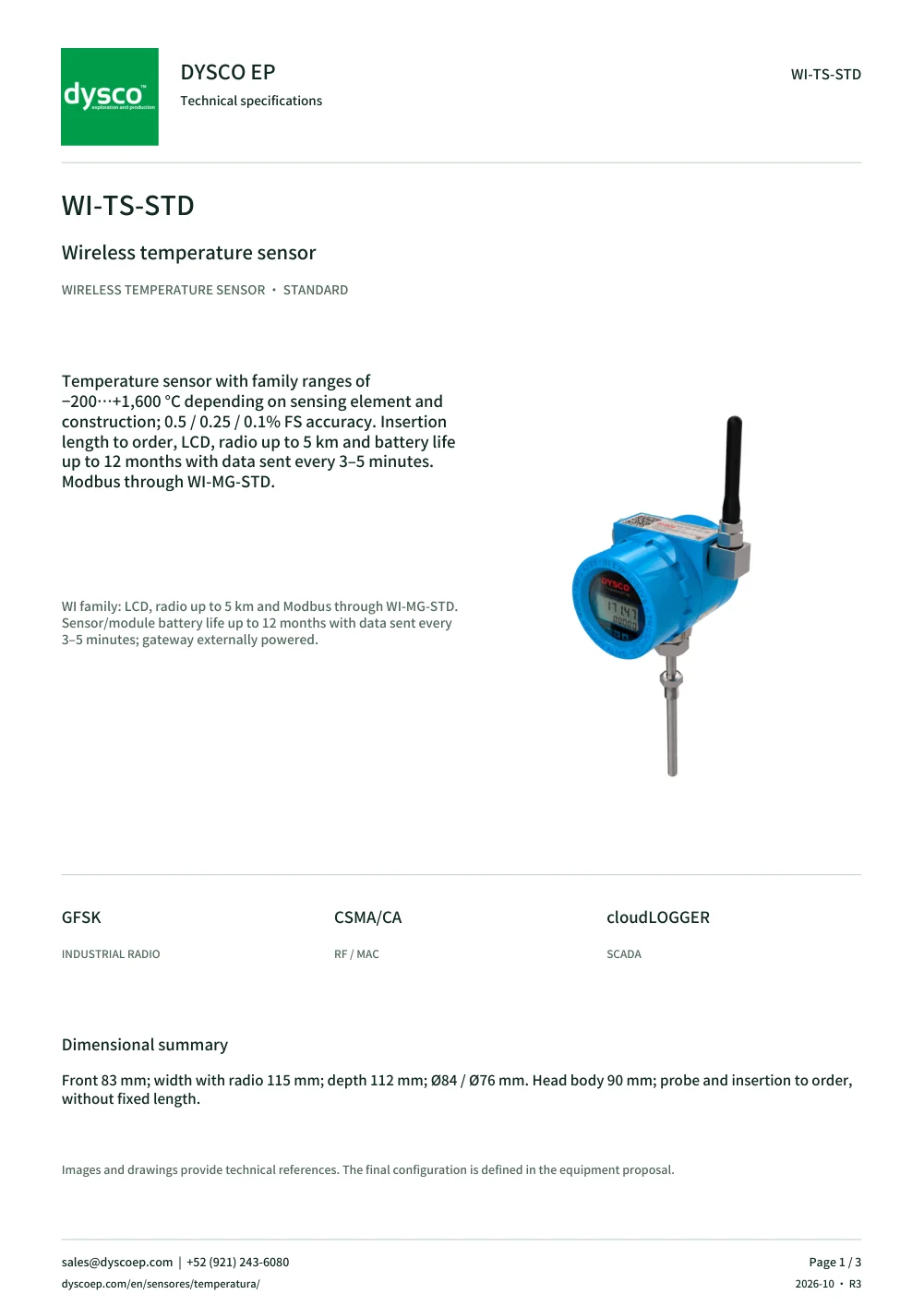

Dimensional drawing · Wireless temperature sensor

Front 83 mm; width with radio 115 mm; depth 112 mm; Ø84 / Ø76 mm. Head body 90 mm; probe and insertion to order, without fixed length.

Measurement range depends on the element, probe, thermowell and thermal isolation. −20…+80 °C is the electronics operating limit, not the high-temperature process limit.

CLOUDLOGGER SCADA INTEGRATION

Every WI sensor and module is compatible with WI-MG-STD. Sensor / I/O → wireless link → WI-MG-STD → RS-485 / Modbus RTU → PLC, RTU or cloudLOGGER SCADA. The gateway provides the family Modbus interface.

cloudLOGGER SCADA ↗Industrial instrumentation ↗

COMMUNICATIONS AND REFERENCES

Modbus RTU is implemented on the gateway serial interface. Radio frequency and operation are verified for the installation country. If MQTT is required, it is provided at the integration layer, not claimed as a native sensor protocol.

Designed to meet Class I, Division 2. This design statement is not third-party certification; hazardous-area selection is verified against unit marking, documentation and installation conditions.

ISO/IEC 20922 ↗Modbus ↗IECEx ↗

TECHNICAL QUESTIONS

Which technical information applies to this equipment?

The page distinguishes model-datasheet data from common platform references. Performance of the proposed variant is confirmed against its configuration and current documentation.

How should I interpret the drawing dimensions?

Front 83 mm; width with radio 115 mm; depth 112 mm; Ø84 / Ø76 mm. Head body 90 mm; probe and insertion to order, without fixed length. Measurement range depends on the element, probe, thermowell and thermal isolation. −20…+80 °C is the electronics operating limit, not the high-temperature process limit.

What should I confirm before equipment selection?

Specify the variable or signal, operating conditions, connection, power, authorized band, distance and monitoring platform. Model-specific ranges and interfaces are defined for the selected equipment.

How does it integrate with cloudLOGGER SCADA?

Every WI sensor and module is compatible with WI-MG-STD. Sensor / I/O → wireless link → WI-MG-STD → RS-485 / Modbus RTU → PLC, RTU or cloudLOGGER SCADA. The gateway provides the family Modbus interface.

Can I generate the technical datasheet from this page?

Yes. The preview and PDF are built in your browser from the same technical data as this page. The PDF includes the image, specifications, dimensional drawing, integration and contact details.

What must be checked for hazardous-area installation?

Designed to meet Class I, Division 2. This design statement is not third-party certification; hazardous-area selection is verified against unit marking, documentation and installation conditions.
