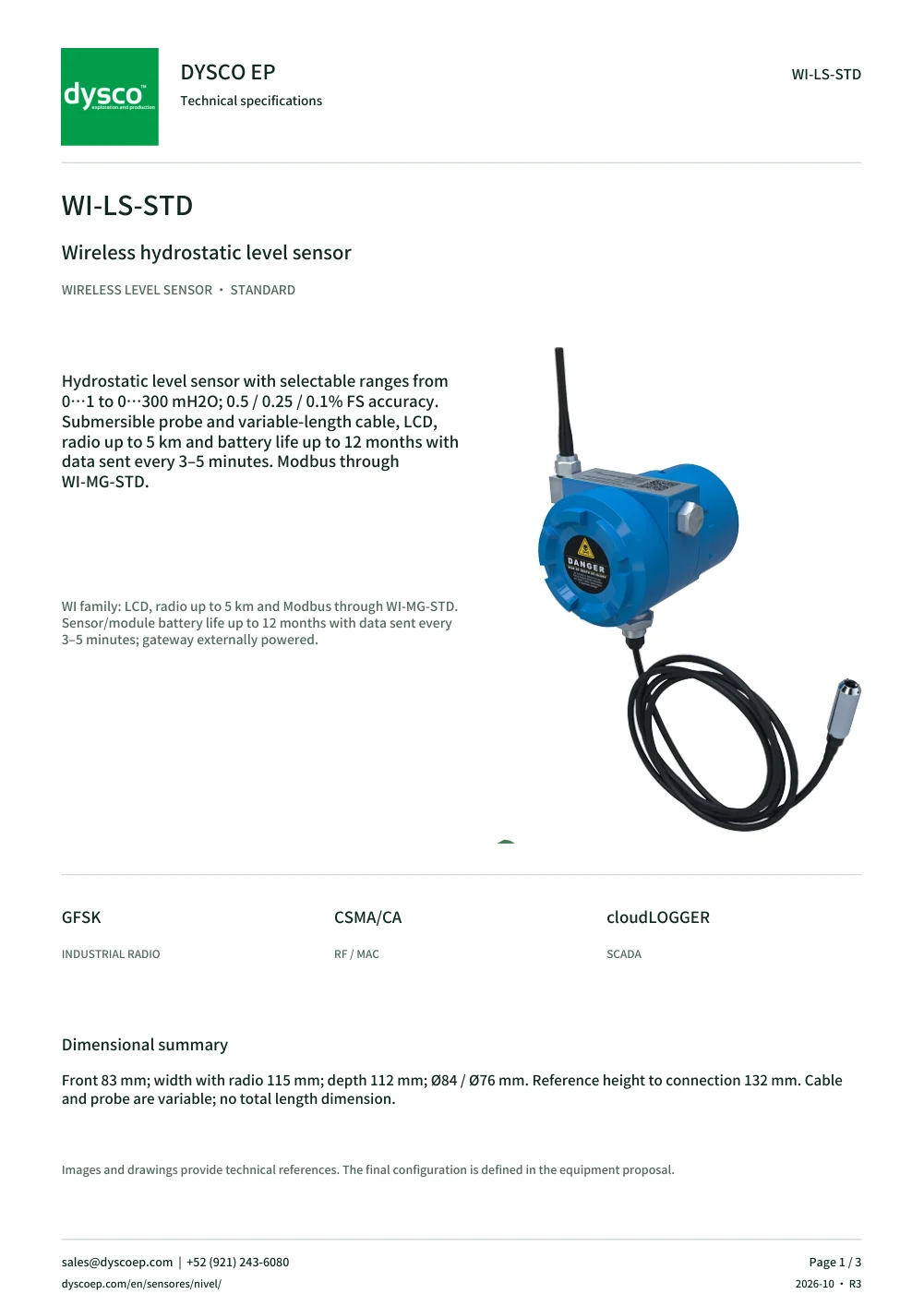

MODEL WITH REFERENCE DATASHEET
Wireless hydrostatic level sensor
WIRELESS LEVEL SENSOR · STANDARD
Hydrostatic level sensor with selectable ranges from 0…1 to 0…300 mH2O; 0.5 / 0.25 / 0.1% FS accuracy. Submersible probe and variable-length cable, LCD, radio up to 5 km and battery life up to 12 months with data sent every 3–5 minutes. Modbus through WI-MG-STD.
Documentary basis: DYSCO / configuration technical documentation · Web revision 2026-10 · R3
WI family: LCD, radio up to 5 km and Modbus through WI-MG-STD. Sensor/module battery life up to 12 months with data sent every 3–5 minutes; gateway externally powered.
| Measurement principle | Hydrostatic pressure; isolated piezoresistive element |
|---|---|
| Family level ranges | 0…1 to 0…300 mH2O, according to selection |
| Accuracy options | 0.5 / 0.25 / 0.1% FS, according to configuration |
| Cable and probe length | Application-specific; no fixed length in drawing |
| Process connections | Submersible probe; DN50 / DN80 / DN100 flanges depending on construction |
| RF frequency | 430 MHz / 470 MHz, depending on variant |
|---|---|
| Available communications | WSN; GPRS on the cellular-equipped variant |
| Acquisition and transmission profile | Configurable; battery-life reference with data sent every 3–5 minutes |
| Transmit power | Adjustable 20 dBm, according to configuration |
| Power supply | 3.6 V battery or 12/24 VDC according to variant |
|---|---|
| Operating temperature | −20 … +80 °C |
| Wetted parts | Stainless steel; verify fluid compatibility |
| Enclosure | Aluminum / IP67 according to configuration |
| Family compatibility | Every WI device is compatible with the WI-MG-STD gateway |
|---|---|
| Modbus interface | RS-485 / Modbus RTU through WI-MG-STD; not a direct Modbus sensor output |
| Wireless coverage | Up to 5 km with line of sight and suitable link conditions |
| Design objective | Designed to meet Class I, Division 2; verify unit marking and installation conditions |
| Local indication | LCD |
| Battery life | Up to 12 months with data sent every 3–5 minutes, depending on battery and use conditions |
| Battery-life conditions | Battery-life reference: data sent every 3–5 minutes. Internal sampling is configured separately |
mH2O represents water-column pressure. For other liquids define density and level scaling; confirm probe and cable compatibility.
Figures describe family options, not all available simultaneously. Confirm range, connection, materials, power and radio for the ordered unit.
The band and radio operation must match the variant and local installation regulations.
Front 83 mm; width with radio 115 mm; depth 112 mm; Ø84 / Ø76 mm. Reference height to connection 132 mm. Cable and probe are variable; no total length dimension.
mH2O represents water-column pressure. For other liquids define density and level scaling; confirm probe and cable compatibility.
Every WI sensor and module is compatible with WI-MG-STD. Sensor / I/O → wireless link → WI-MG-STD → RS-485 / Modbus RTU → PLC, RTU or cloudLOGGER SCADA. The gateway provides the family Modbus interface.
cloudLOGGER SCADA ↗Industrial instrumentation ↗Modbus RTU is implemented on the gateway serial interface. Radio frequency and operation are verified for the installation country. If MQTT is required, it is provided at the integration layer, not claimed as a native sensor protocol.
Designed to meet Class I, Division 2. This design statement is not third-party certification; hazardous-area selection is verified against unit marking, documentation and installation conditions.
ISO/IEC 20922 ↗Modbus ↗IECEx ↗The page distinguishes model-datasheet data from common platform references. Performance of the proposed variant is confirmed against its configuration and current documentation.
Front 83 mm; width with radio 115 mm; depth 112 mm; Ø84 / Ø76 mm. Reference height to connection 132 mm. Cable and probe are variable; no total length dimension. mH2O represents water-column pressure. For other liquids define density and level scaling; confirm probe and cable compatibility.
Specify the variable or signal, operating conditions, connection, power, authorized band, distance and monitoring platform. Model-specific ranges and interfaces are defined for the selected equipment.
Every WI sensor and module is compatible with WI-MG-STD. Sensor / I/O → wireless link → WI-MG-STD → RS-485 / Modbus RTU → PLC, RTU or cloudLOGGER SCADA. The gateway provides the family Modbus interface.
Yes. The preview and PDF are built in your browser from the same technical data as this page. The PDF includes the image, specifications, dimensional drawing, integration and contact details.
Designed to meet Class I, Division 2. This design statement is not third-party certification; hazardous-area selection is verified against unit marking, documentation and installation conditions.
