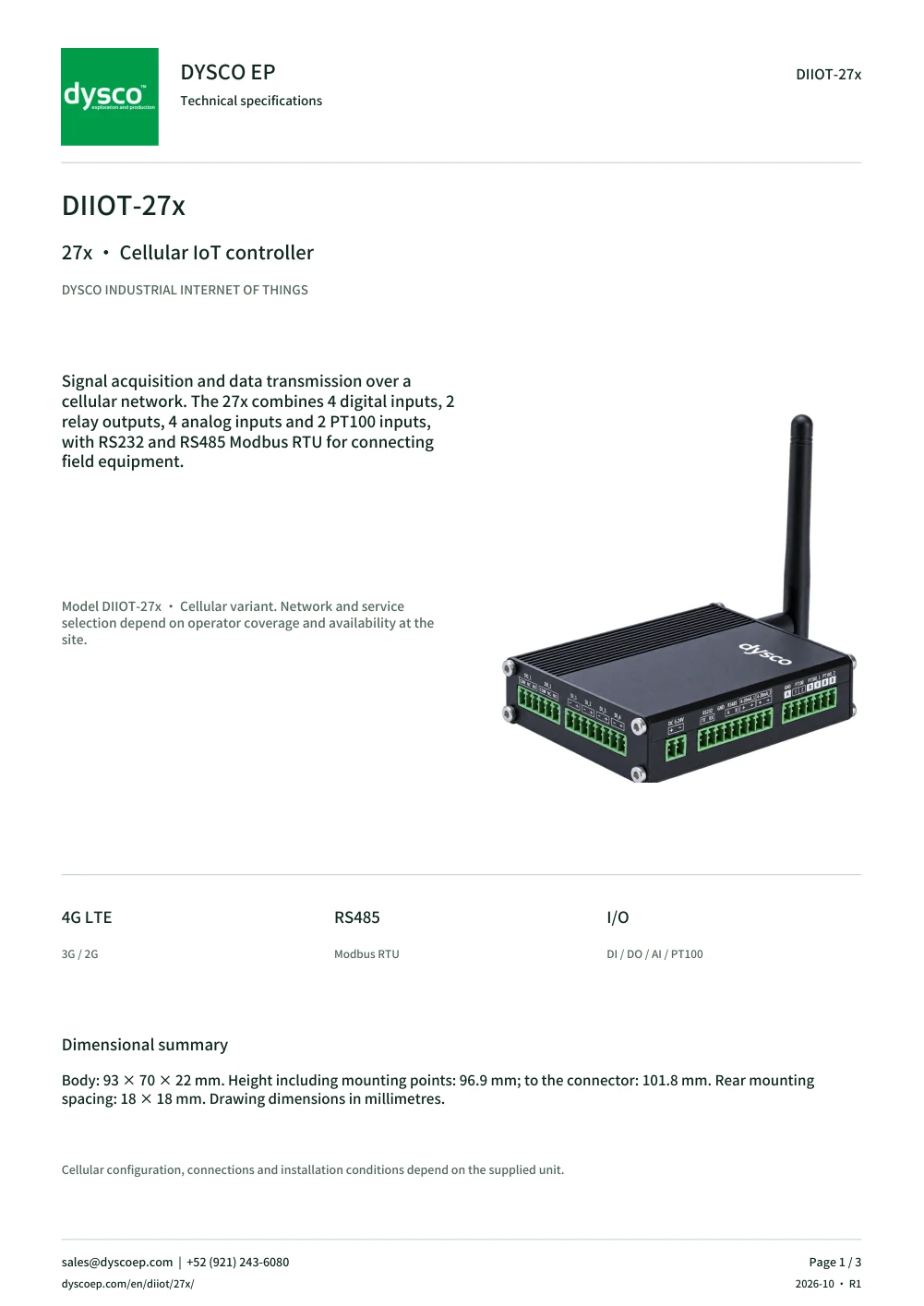

MODEL WITH REFERENCE DATASHEET
Cellular IoT controller
27x
DIIOT-27x · DYSCO INDUSTRIAL INTERNET OF THINGS
Signal acquisition and data transmission over a cellular network. The 27x combines 4 digital inputs, 2 relay outputs, 4 analog inputs and 2 PT100 inputs, with RS232 and RS485 Modbus RTU for connecting field equipment.
Cellular bands, operator, SIM and receiving-system compatibility are confirmed for supply. The −200 to +800 °C range applies to PT100 measurement, not enclosure ambient temperature.
SPECIFICATIONS
Model DIIOT-27x · Cellular variant. Network and service selection depend on operator coverage and availability at the site.
| Cellular communication | |
|---|---|
| Network | 4G LTE / 3G / 2G |
| Antenna connector | 1 × SMA female, 50 Ω |
| SIM | 1 × Micro SIM (3FF) |
| Communication modes | TCP / UDP / MQTT / SMS |
| Inputs and outputs | |
| Digital inputs | 4 × opto-isolated DI, 3–24 VDC; pulse counting |
| Digital outputs | 2 × SPDT relays; contact rating 3 A, maximum 30 VDC or 250 VAC |
| Current inputs | 2 × 4–20 mA |
| Voltage inputs | 2 × 0–10 V |
| Analog resolution | 12 bit |
| RTD inputs | 2 × PT100; 2- or 3-wire connection |
| RTD resolution | 12 bit |
| PT100 measurement range | −200 to +800 °C |
| Ports and functions | |
| RS232 | 1 × port; transparent mode |
| RS485 | 1 × port; Modbus RTU |
| Serial baud rate | 1,200–115,200 bps |
| Configuration | 1 × USB Type-C |
| Signal connections | 3.5 mm terminal blocks |
| LED indicators | 1 × System + 1 × ACT |
| Built-in functions | Watchdog, timer, local trigger conditions and actions |
| Power and installation | |
| Power supply | 5–24 VDC; 3.5 mm terminal block |
| Enclosure | Black metal |
| Protection | IP30; indoor application |
| Operating ambient temperature | −20 to +60 °C |
| Relative humidity | 0–95%, non-condensing, at 25 °C |
| Dimensions | 93 × 70 × 22 mm |
| Mounting | Desktop, wall or DIN rail |
ENGINEERING NOTES
Cellular bands, operator, SIM and receiving-system compatibility are confirmed for supply. The −200 to +800 °C range applies to PT100 measurement, not enclosure ambient temperature.
DIMENSIONS AND MOUNTING
Body: 93 × 70 × 22 mm. Height including mounting points: 96.9 mm; to the connector: 101.8 mm. Rear mounting spacing: 18 × 18 mm. Drawing dimensions in millimetres.
93 × 70 × 22 mm. Black IP30 metal enclosure for indoor applications. Desktop, wall or DIN rail mounting. 5–24 VDC supply; operating ambient temperature from −20 to +60 °C.
INTEGRATION AND COMMUNICATIONS
RS485 Modbus RTU, RS232 and field signals connect to a monitoring platform through the cellular network using MQTT, TCP, UDP or SMS, according to configuration. Integration with cloudLOGGER SCADA is defined for the application.
cloudLOGGER SCADA ↗BACK TO CATALOGUE ↗SELECTION DATA
Confirm the cellular variant, regional bands, carrier, SIM and data access. RS485 supports Modbus RTU; serial parameters must match the connected equipment.
Cellular bands, operator, SIM and receiving-system compatibility are confirmed for supply. The −200 to +800 °C range applies to PT100 measurement, not enclosure ambient temperature.
TECHNICAL QUESTIONS
What is the model of the 27x equipment?
The equipment name is 27x and its full model is DIIOT-27x. This page presents the cellular variant for signal acquisition and data transmission.
Which networks and protocols does it use?
The cellular variant covers 4G LTE, 3G and 2G, subject to operator coverage and availability. It offers TCP, UDP, MQTT and SMS modes. The RS485 port uses Modbus RTU and RS232 operates in transparent mode.
Which signals can it receive?
It has 4 opto-isolated digital inputs at 3–24 VDC with pulse counting, 2 × 4–20 mA inputs, 2 × 0–10 V inputs and 2 PT100 inputs for 2- or 3-wire connections. It also includes 2 SPDT relay outputs.
Can it be installed outdoors?
The IP30 enclosure is intended for indoor applications. An exposed installation requires assessment of an enclosure and protection conditions suitable for the site.
What happens if the cellular connection is interrupted?
Configured trigger conditions and actions can operate locally even when the network drops. Remote data transmission requires the cellular connection to be restored.
