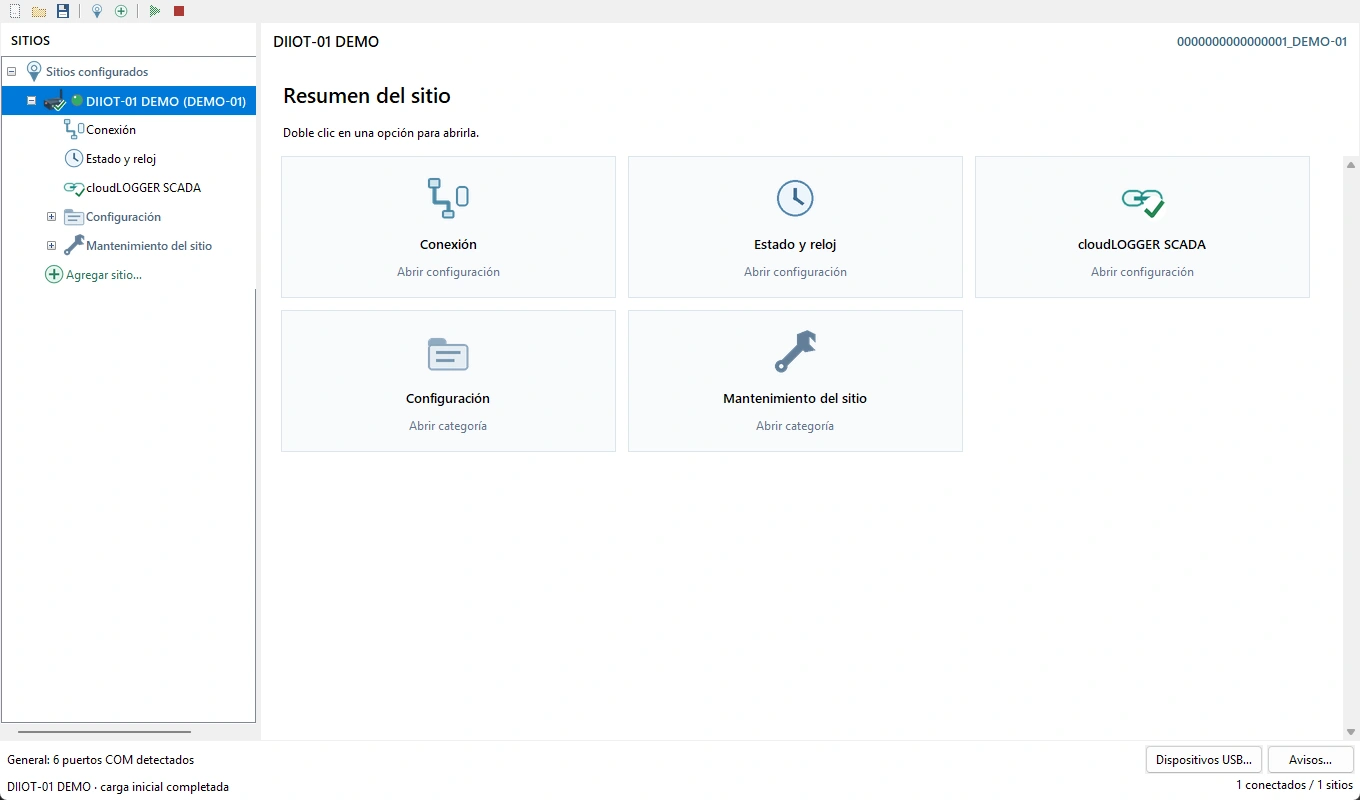

Organize your sites
Manage sites by name and TAG, save connections in projects and open their settings from a shared explorer.
DYSCO EP / DIIOT
DIIOT Site
CONFIGURE YOUR DIIOT-27x SITES.
Prepare your DIIOT-27x sites for operation from one application. Organize connections, adjust signals and acquisition channels, check site status and configure the link to cloudLOGGER SCADA.
Features
Commission the 27x
Set up the local connection, cellular network parameters and clock. Check identification and signal strength during commissioning.
Adjust your signals
Enable and read digital inputs and outputs. Configure scales and units for 4–20 mA and 0–10 V inputs, and the PT100 temperature unit.

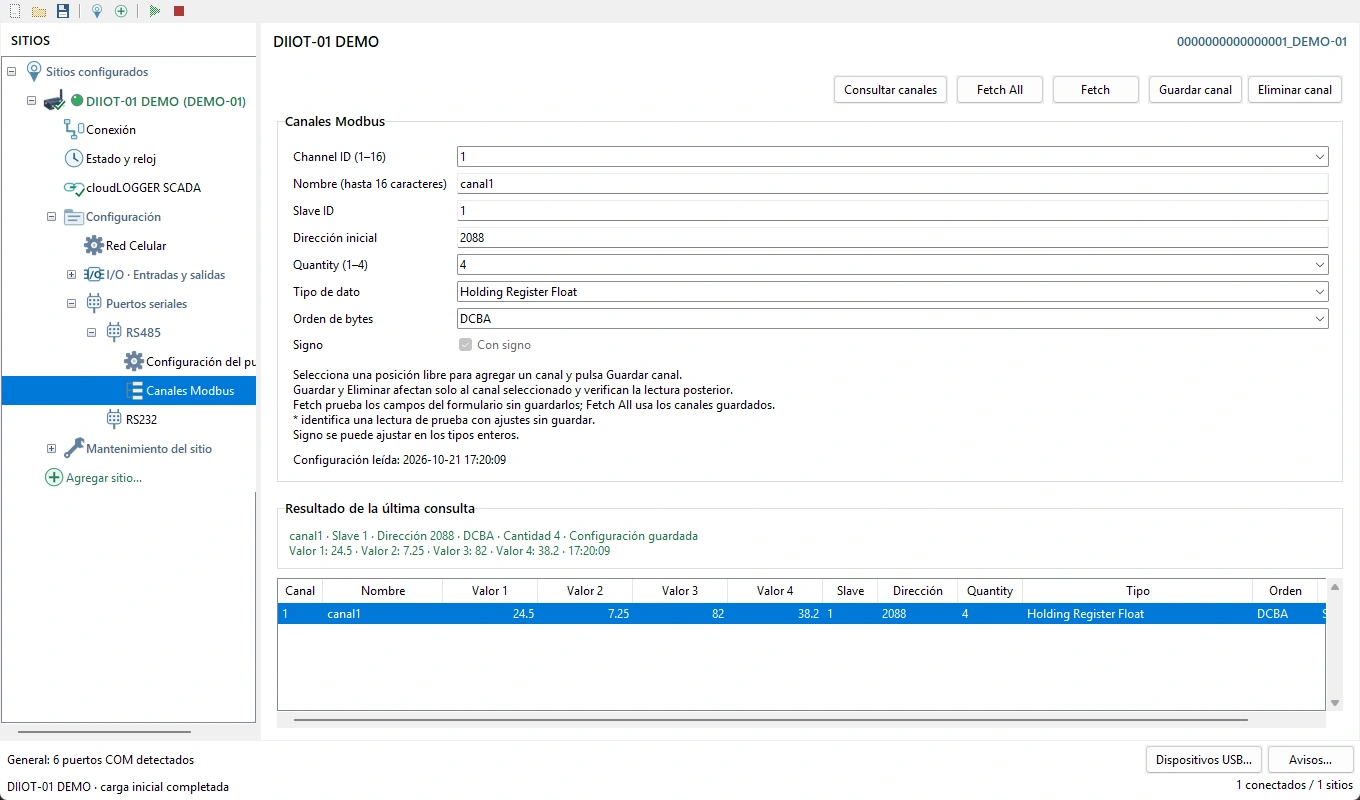

Integrate your instruments
Configure RS485 and RS232. Organize up to 16 Modbus channels, select reading parameters and view up to four values per Holding Float channel.

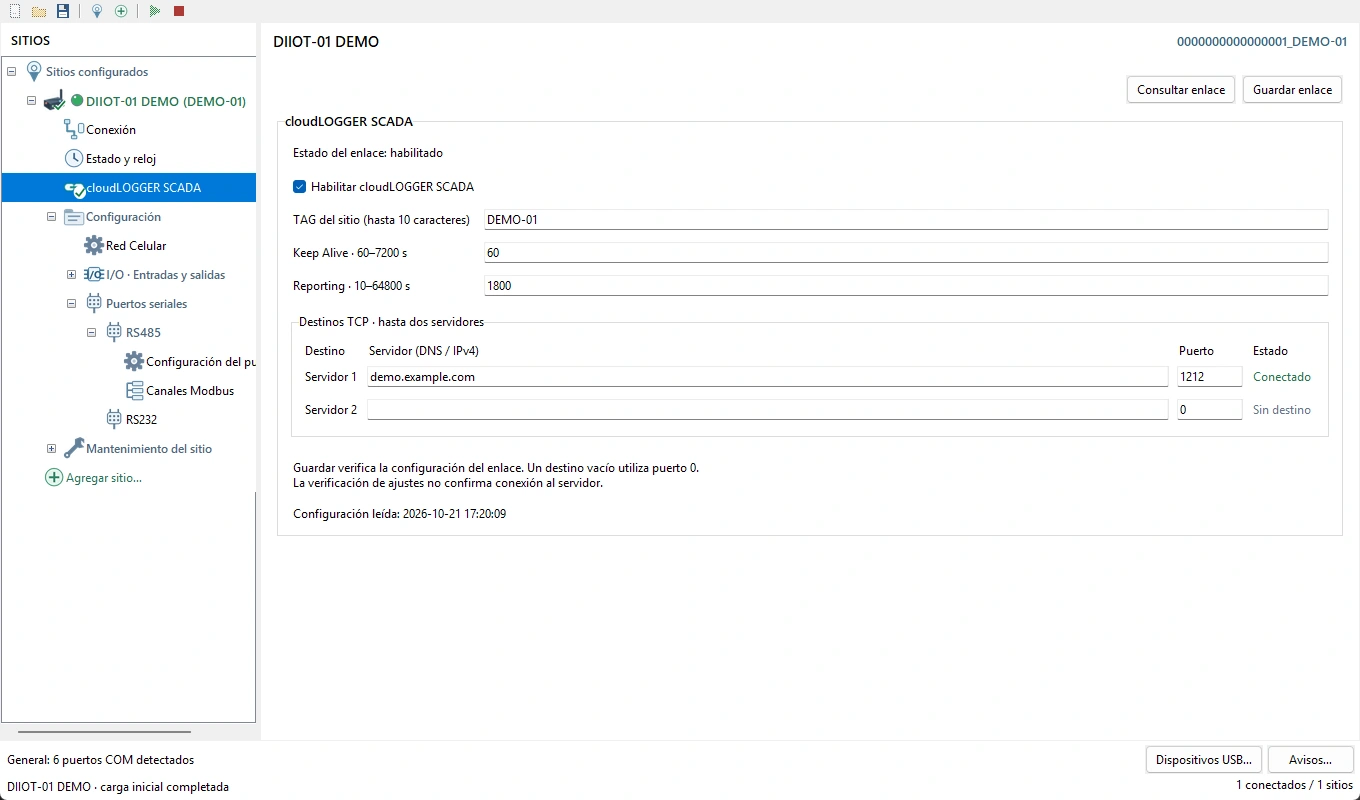

Link to cloudLOGGER SCADA
Set the TAG, destinations and reporting intervals. Check the first destination status separately from cellular registration.
Support maintenance
Check status and clock, refresh readings when needed and access site restart with confirmation.
Requirements and scope
V1.0.48 · Windows x64 · Portable · Spanish interface. Designed for compatible DIIOT-27x sites. Requires a local USB/serial connection, its driver and the site password. Cellular operation requires a SIM, coverage and operator service. Readings reflect the last query; Site is a local configurator, not a receiving server.
Screenshots
Screenshots use demonstration data. Names, identifiers, destinations and values are illustrative.
Getting started
- Extract the ZIP to a folder and open DIIOT-Site.exe.
- Connect your DIIOT-27x, add the site and enter its access password.
- Read the configuration, adjust parameters for your installation and save changes in each section.
- Save the project to retain site organization and connections. Passwords are not included in the project.
